MC3 CONVEYOR NO 1

MC3 Conveyor #1 SBC1800CNVBELWAL

-

Received NEW April 27, 2023, not started up.

-

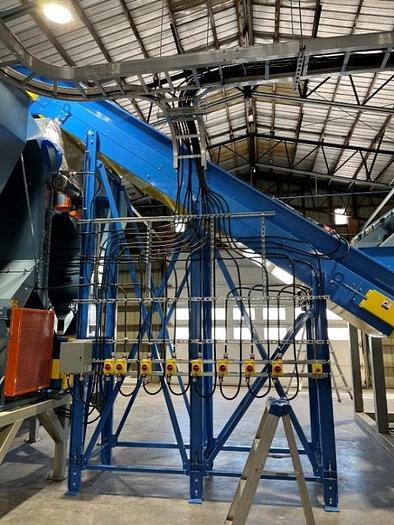

Motor start switches and emergency stop pull cable systems installed around all conveyors

-

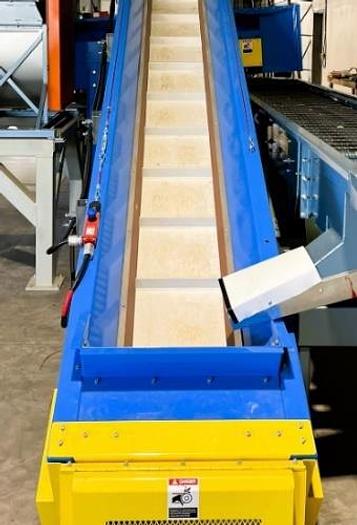

Slider Bed Belt Conveyor (D-Style)

-

Pulley c/c Length: 206"- Horizontal Length: 192"

-

Conveyor Incline: 21°- Conveyor Elevation: 90" at load end, 163" discharge end

-

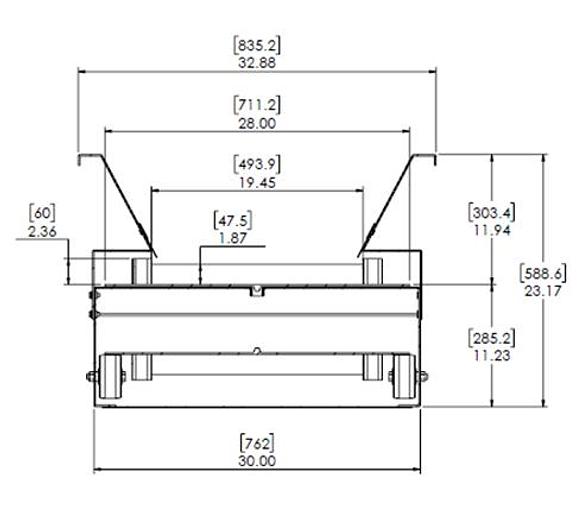

Side Rails: Included (12" height) - Belt Width: 18"- Between Frame Width:

-

TBV- Belt Type: 3-Ply Poly CR74 White PVC w/2.75" cleats @ 12" centers full width between side walls w/ 60mm High White TPU Side Walls, Belt speed (max) 66fpm

-

206” L x 39” W x 23” H, weight 9000 lbs
